How Do You Bypass a Blend Door Actuator

Bypass a Blend Door Actuator

Blend door actuators play a critical role in HVAC systems. They control the air distribution to maintain the desired temperature inside vehicles or buildings. By adjusting a blend door, these actuators help regulate the balance between hot and cold air. In this article, we will guide you on how do you bypass a blend door actuator.

You might need to bypass a blend door actuator for a few reasons. It can be a temporary fix when a replacement actuator isn’t available, an emergency repair during extreme weather conditions, a cost-saving measure, or a way to quickly diagnose the actuator’s malfunction. However, bypassing should be a temporary solution, with a long-term fix being the replacement of the actuator for proper HVAC system operation.

What Are Blend Door Actuators, and How Do They Operate in HVAC Systems?

Bypass a Blend Door Actuator

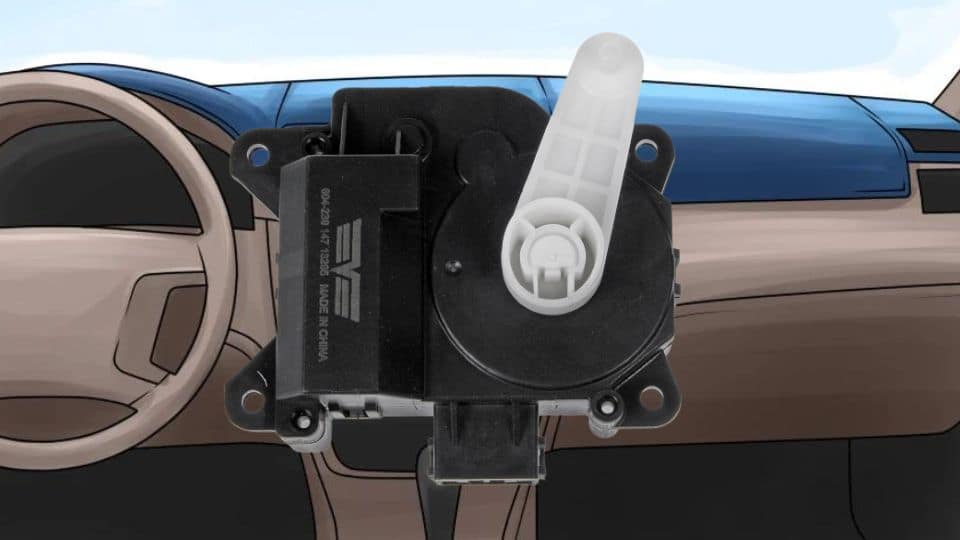

A blend door actuator is a vital component in HVAC systems that manages the distribution of hot and cold air. It does this by controlling the position of a blend door or vent door, which determines the airflow’s temperature and direction. In vehicles, blend door actuators ensure passengers’ comfort, while in buildings, they maintain the climate in various rooms.

How blend door actuators work in HVAC systems

Blend door actuators operate electrically or electronically, receiving signals from the HVAC control system to adjust the position of the blend door. Depending on the desired temperature and airflow, the actuator directs air through different pathways within the system. For instance, when you adjust the thermostat to a warmer temperature, the actuator repositions the blend door to allow more hot air into the system, maintaining a comfortable environment.

Common signs of a malfunctioning blend door actuator

Recognizing the signs of a malfunctioning blend door actuator is essential. Common indicators include inconsistent temperature control within the vehicle or building, incorrect air distribution (hot air when you want cold, or vice versa), unusual clicking or tapping noises from the HVAC system, or complete HVAC system failure. Identifying these symptoms can help you diagnose and address blend door actuator issues promptly.

Related Post
Best Portable Heater For Car Camping
9 Best Microfiber Wash Mitt For Car
Best Plastic Retainer Clips for Cars
Anti-Seize Lubricants For Brake Calipers

How Do You Bypass a Blend Door Actuator? A Step-by-Step Guide

How Do You Bypass a Blend Door Actuator

In this section, we will provide a detailed, step-by-step guide on bypassing a blend door actuator, offering a practical solution for those facing HVAC issues due to a malfunctioning actuator.

A. Identifying the blend door actuator’s location

Start by consulting your vehicle’s or building’s service manual to locate the blend door actuator. It is typically positioned within the HVAC system, which can vary in placement from one make and model to another.

Once identified, ensure you can access the actuator without causing any damage or disruption to other components.

B. Accessing the blend door actuator

Depending on your specific system, you may need to remove panels, dashboard components, or other obstructions to reach the blend door actuator.

Take your time and follow the disassembly instructions carefully to avoid causing additional damage during the process.

C. Disconnecting the actuator

After gaining access, disconnect the actuator from the wiring harness or control module. This effectively isolates the actuator from the HVAC system.

Ensure you note or mark the connections to simplify reassembly later on.

D. Manually adjusting the blend door

Locate the blend door itself, which the actuator was controlling. The door may be within the ductwork, near the actuator.

Gently move the blend door manually to your desired position. This will determine the balance of hot and cold airflow.

E. Securing the blend door in the desired position

To maintain the manual adjustment of the blend door, secure it in place. You can use cable ties, clips, or any suitable method that ensures the door remains fixed as intended.

Double-check the positioning to guarantee it aligns with your temperature preferences.

F. Reassembling the HVAC system

Carefully retrace your steps from accessing the blend door actuator, ensuring you reassemble any components you removed.

Reconnect the actuator if you plan to reverse the bypass at a later date. Make sure all connections are secure.

Test the HVAC system to confirm that the manual adjustment is working as expected. If the temperature and air distribution are to your liking, the bypass was successful.

Remember that bypassing a blend door actuator is typically a temporary or emergency measure. If you intend to maintain long-term, trouble-free operation of your HVAC system, consider replacing the faulty actuator as soon as possible or consult a professional for expert guidance.

How to Replace a Blend Door Actuator

When bypassing a blend door actuator is no longer a viable solution or if you’re looking for a permanent fix, replacing the actuator is often the best course of action. In this section, we’ll walk you through the process of replacing a blend door actuator step by step, ensuring you can restore your HVAC system to full functionality.

Our Topic Picks To Replace


Product Name & Details

Check Price

Control the temperature and flow

Designed as a direct replacement for the original air door actuator

designed to fit various models of Buick, Cadillac and Pontiac

Replaces the factory blend door actuator on your Chevy or GMC vehicle

Compatible with multiple car models

1. Gather Your Tools and Materials:

Before you begin, make sure you have the necessary tools and materials, which typically include a screwdriver or socket set, a new blend door actuator compatible with your system, safety gear (gloves and safety glasses), and a service manual for your specific vehicle or building.

2. Locate the Faulty Blend Door Actuator:

Consult your service manual to pinpoint the exact location of the faulty blend door actuator. This will help you avoid unnecessary disassembly and ensure you’re working on the correct component.

3. Prepare Your Workspace:

Park your vehicle or turn off the HVAC system in your building and disconnect the power source. You should also ensure proper ventilation, as HVAC systems may contain dust and debris that can be harmful when disturbed.

4. Disassemble the Necessary Components:

Carefully remove any panels, dashboard components, or obstructions that are blocking access to the blend door actuator. Follow your service manual’s instructions to prevent damage during the disassembly process.

5. Disconnect the Old Blend Door Actuator:

Unplug or unscrew the old blend door actuator from the HVAC system. Take note of how it is connected to make reassembly easier.

6. Install the New Blend Door Actuator:

Place the new blend door actuator in the same position as the old one. Secure it with screws or connectors, ensuring a tight fit.

7. Reassemble the Components:

Reverse the disassembly steps, carefully reassembling the components you removed earlier. Be diligent to prevent any damage or misalignment during this process.

8. Test the HVAC System:

Reconnect the power source and test the HVAC system. Ensure that the new blend door actuator is functioning correctly and that temperature and airflow are within your desired settings.

9. Fine-Tune as Necessary:

If the HVAC system is not operating as expected, you may need to fine-tune the blend door actuator’s position. Follow your service manual’s instructions for calibration or adjustment.

10. Regular Maintenance:

To prolong the lifespan of your HVAC system and the new blend door actuator, perform regular maintenance, including cleaning filters, ducts, and other components, as recommended in the system’s maintenance guide.

By following this step-by-step guide, you can replace a faulty blend door actuator, ensuring efficient and reliable HVAC performance for your vehicle or building. Remember to consult your service manual for specific instructions tailored to your system.

How to Reset a Blend Door Actuator: Regaining Control

Sometimes, a blend door actuator can become out of sync with the HVAC system, leading to temperature control issues. In this section, we’ll explore the steps to reset a blend door actuator, potentially resolving problems without the need for replacement.

Locate the Blend Door Actuator

Before resetting the blend door actuator, you’ll need to find its location. This is typically detailed in your vehicle’s or building’s service manual. The actuator is usually found near the blend door itself, within the HVAC system.

Access the Actuator

If necessary, remove any panels or components that obstruct access to the blend door actuator. Follow the service manual’s instructions to avoid causing damage during disassembly.

Disconnect the Actuator

Unplug the blend door actuator from the wiring harness or control module. This will ensure that it does not receive any electrical signals during the reset process.

Turn the Ignition On

In the case of a vehicle, turn the ignition to the “On” position without starting the engine. For building HVAC systems, ensure the power source is connected.

Manually Move the Blend Door

With the ignition on, manually move the blend door to your desired position. Use your hands to gently shift the door to either the fully hot or fully cold position, depending on your preference. This manually sets the blend door’s position.

Reconnect the Actuator

Plug the blend door actuator back into the wiring harness or control module. This connection will sync the actuator with the new position of the blend door.

Test the HVAC System

Start your vehicle or turn on your building’s HVAC system. Check if the temperature and airflow are now in line with your preferences. If the reset was successful, the HVAC system should operate correctly.

Fine-Tune as Necessary

If you encounter any issues with the HVAC system’s performance after the reset, you may need to fine-tune the blend door actuator’s position. Refer to your service manual for specific instructions on calibration or adjustment.

Regular Maintenance

To prevent future synchronization issues, practice routine maintenance. This includes cleaning or replacing air filters, checking for obstructions in ducts, and ensuring the overall health of the HVAC system.

Resetting a blend door actuator can often resolve temperature control problems without the need for a full replacement. However, if resetting the actuator doesn’t solve the issue, or if the actuator frequently loses synchronization, it may be an indication of a more significant problem that requires professional inspection and potential replacement.

Frequent Ask Questions

How Long Does It Take to Replace a Blend Door Actuator?

The time it takes to replace a blend door actuator varies. Typically, it can range from 1 to 3 hours. Factors such as your experience, available tools, the complexity of your vehicle or HVAC system, the actuator’s location, and your familiarity with the system influence the time needed. Experienced individuals may complete the replacement more quickly, while those new to the process might take longer. Patience and attention to detail are essential for a successful replacement.

Where Is The Blend Door Actuator Located?

A: The location of the blend door actuator can vary depending on the make and model of your vehicle or the type of HVAC system in your building. It’s typically found within the HVAC system, near the blend door itself. Specific instructions can be found in your vehicle’s service manual or your building’s HVAC documentation.

What Does The Blend Door Actuator Do?

A: The blend door actuator is responsible for controlling the distribution of hot and cold air in your vehicle or building. It adjusts the position of the blend door, which determines the balance between hot and cold air, ensuring the temperature inside remains at the desired level.

How To Test The Blend Door Actuator?

A: To test the blend door actuator, follow these general steps:

  1. Turn on your vehicle or HVAC system.
  2. Adjust the temperature settings from hot to cold and vice versa.
  3. Listen for any unusual clicking or tapping noises.
  4. Feel the airflow to determine if it corresponds with your temperature settings.
  5. If the actuator is malfunctioning, you may need to diagnose further or replace it.

Where Is The Blend Door Actuator Located In A Chevy?

A: The location of the blend door actuator in a Chevrolet vehicle can vary based on the specific model and year. Typically, it’s found within the HVAC system, often behind the dashboard or near the center console. Refer to your Chevy’s service manual for precise instructions on its location.

How To Fix A Blend Door Actuator?

A: Fixing a blend door actuator may involve resetting it, as mentioned in the article, or replacing it. To replace it:

  1. Gather necessary tools and materials.
  2. Locate the faulty actuator and access it.
  3. Disconnect the old actuator.
  4. Install the new actuator in the same position.
  5. Reassemble components.
  6. Test the HVAC system.
  7. Fine-tune if necessary.
  8. Perform regular maintenance for prevention.


This guide has provided a thorough understanding of how do you bypass a blend door actuator, their functions, and solutions for common issues. Whether you need to bypass, replace, reset, or find a blend door actuator in a Chevrolet vehicle, this article has you covered. Achieving optimal HVAC performance is now more attainable, with options for both DIY enthusiasts and those seeking professional assistance.
